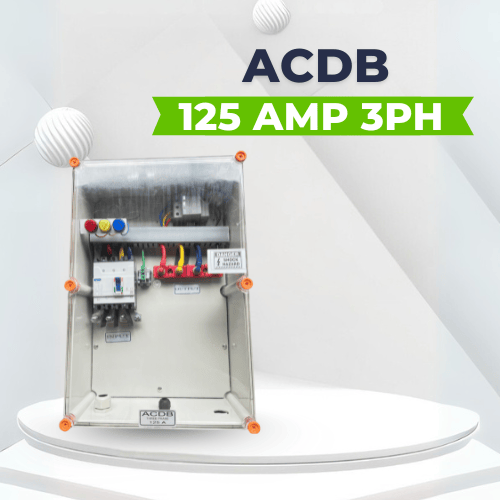

The ACDB (AC Distribution Box) for 60–70 kW solar plants is designed to safely distribute AC power from solar inverters to the grid or load. It provides protection against overload, short circuits, and surges while offering reliable monitoring through RYB indication lamps.

This ACDB is built with high-quality components like L&T AC MCB and AC SPD to ensure maximum system safety and long-term durability.

Key Components Included

1. AC MCB – 125A (L&T)

   • Provides protection against overload and short circuit.

   • Ensures safe disconnection during fault conditions.

2. AC SPD – 3 Phase (L&T)

   • Surge Protection Device for protection against lightning surges and voltage spikes.

   • Type 2 SPD suitable for solar grid-tied applications.

3. RYB Indication Lamps

   • Real-time phase status monitoring.

   • Quickly identify phase failure or imbalance.

4. Heavy-Duty Enclosure

   • Compact 560 × 380 mm weatherproof enclosure.

   • Rust-proof powder coating for indoor/outdoor applications.

Applications

• 60–70 kW Rooftop Solar Power Plants (Commercial & Industrial)

• Grid-Tied Solar Systems

• Hybrid Solar Systems with net metering

• Industrial 3-Phase Power Distribution
