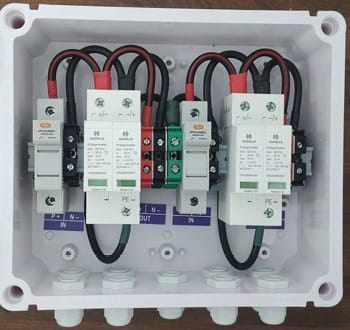

DCDB 2IN-2OUT 600V (2 SPD) (2 Series x ≤12 Panels) – Fuse: HAVELLS/ELMEX & SPD: ELMEX
This DC Distribution Board (DCDB) is designed for two-input and two-output solar PV string configurations, rated for 600V DC. It accommodates 2 series of up to ≤12 panels each, making it suitable for medium-scale rooftop and ground-mounted solar projects. The robust, weatherproof enclosure ensures durability and long-term reliability in outdoor environments. It is fitted with high-quality HAVELLS/ELMEX DC fuses for overcurrent protection and two ELMEX Surge Protection Devices (SPD) to protect against voltage surges from lightning or grid disturbances. This configuration ensures safe, efficient, and reliable DC power transmission to the inverter, enhancing the overall lifespan and performance of the solar power system.
