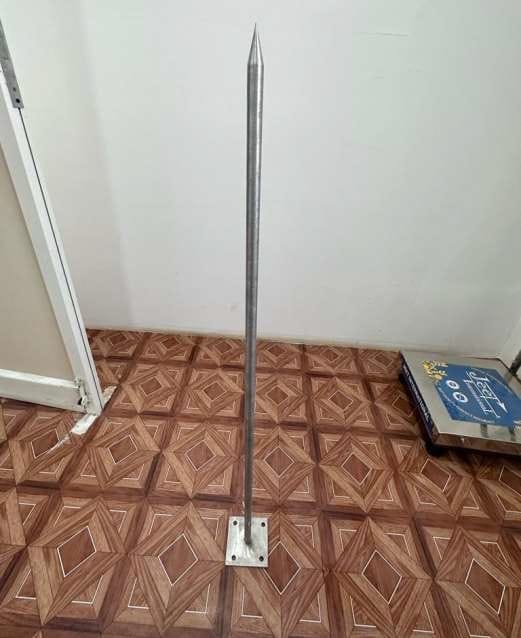

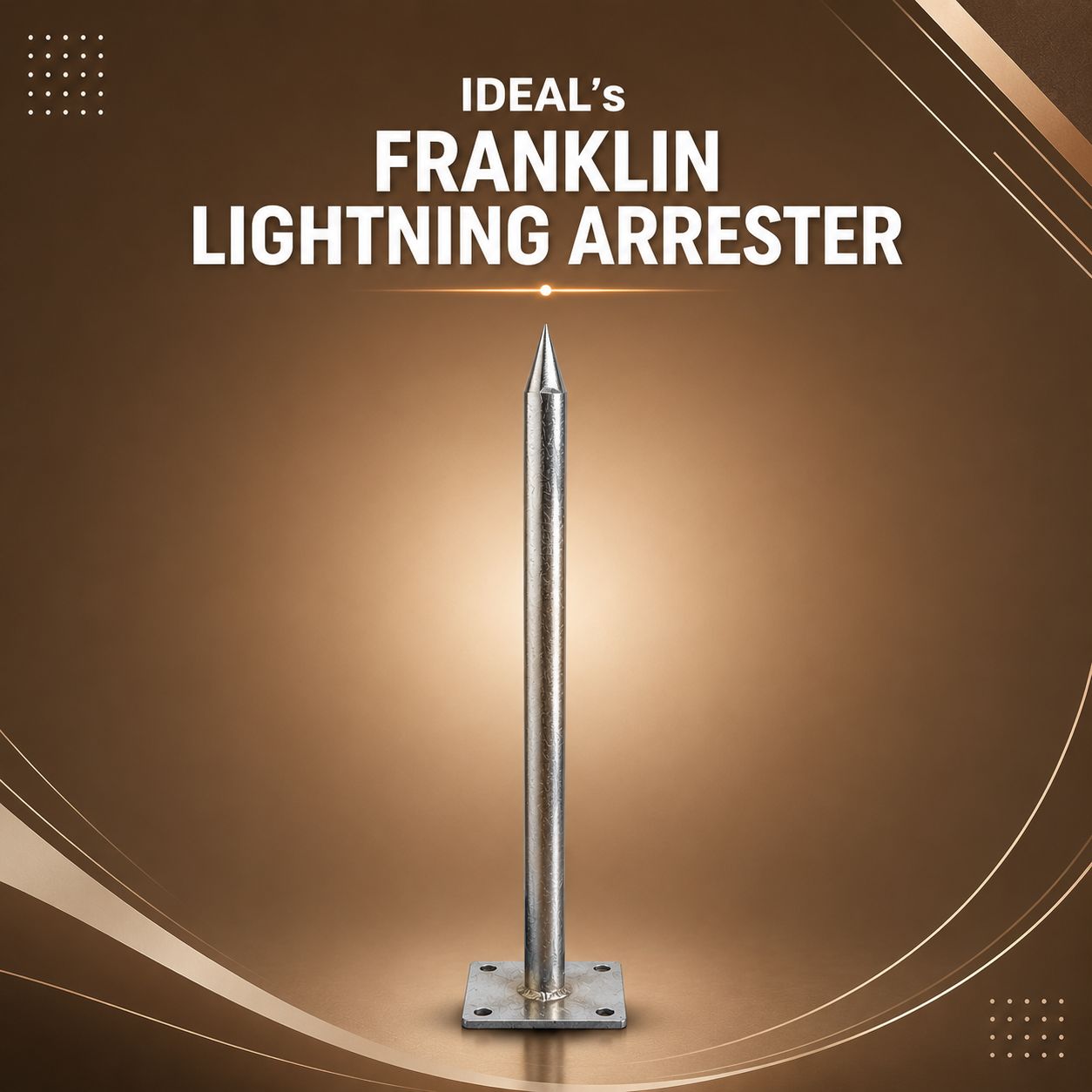

IDEAL Franklin Lightning Arrester

The IDEAL Franklin Lightning Arrester is a robust lightning protection device designed to safely intercept and discharge lightning strikes to the ground, protecting buildings, solar installations, and electrical equipment from surge damage. Manufactured from solid aluminium, it offers high conductivity, corrosion resistance, and long service life in outdoor environments.

The arrester features a sharp pointed spike tip for effective lightning interception and is mounted on a sturdy base plate for secure installation. A clamp with nut-bolt arrangement ensures firm connection with the down conductor for reliable current flow to the earthing system.

Designed in accordance with IEC 62305 and IS 2309 standards, it provides dependable protection for residential, commercial, and industrial applications.

Key Specifications

• Material: Solid Aluminium

• Diameter: 16 mm

• Height: 1 Meter

• Tip: Pointed Spike

• Base Plate: 100 × 100 × 6 mm

• Connection: Clamp with Nut & Bolt

• Standard: As per IEC 62305 / IS 2309
