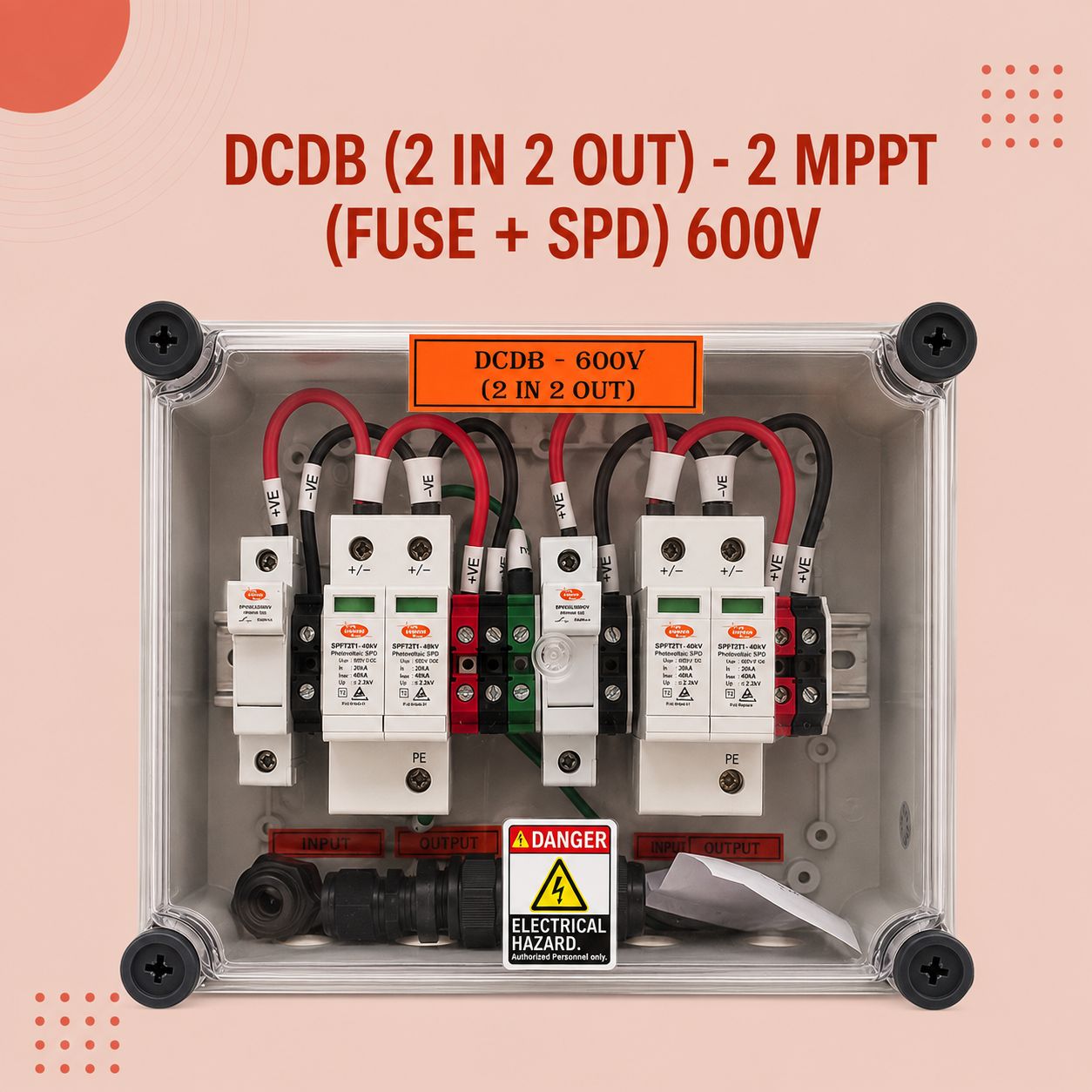

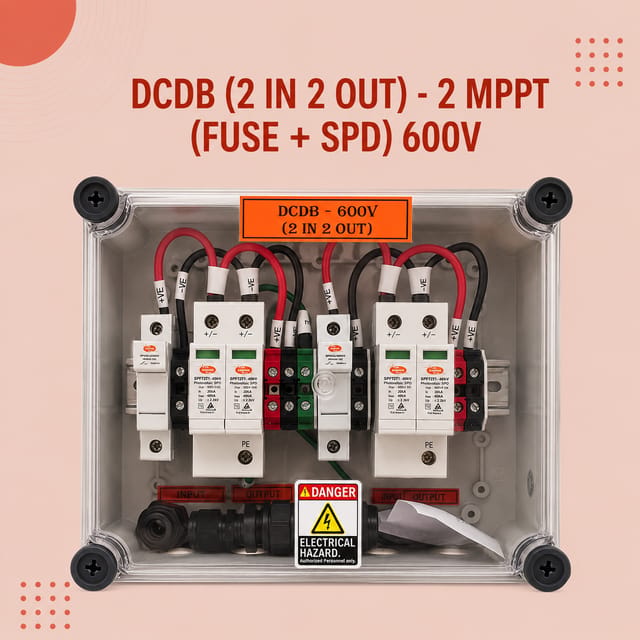

The DCDB 2 IN 2 OUT – 2 MPPT (Fuse + SPD) 600V is a reliable Solar DC Distribution Box designed to provide safe protection and isolation for 2 PV string inputs and 2 outputs connected to 2 separate MPPTs in solar photovoltaic systems. It combines PV Fuse protection and DC Surge Protection Devices (SPD) to safeguard solar equipment against overcurrent, short circuits, and transient voltage surges caused by lightning or electrical disturbances.

The unit is equipped with 2 Nos. of 25A PV Fuses (Havells) for individual PV string protection and 2 Nos. of DC SPDs (Havells) for dedicated MPPT-wise surge protection. The complete assembly is housed in a durable 220 × 190 × 100 mm ABS + PC enclosure, providing excellent resistance against UV rays, dust, moisture, and harsh environmental conditions.

Key Features:

• Designed for 2 MPPT with 2 PV string inputs and 2 outputs
• 2 × 25A PV Fuses (Havells) for reliable overcurrent protection
• 2 × DC SPDs (Havells) for surge and lightning protection
• MPPT-wise protection for enhanced solar system safety
• Durable 220 × 190 × 100 mm ABS + PC enclosure
• UV-resistant, weatherproof, and corrosion-resistant construction
• Compact design for easy installation and maintenance
• Suitable for residential, commercial, and industrial solar PV systems
• Ensures safe DC isolation and reliable PV system operation

The DCDB 2 IN 2 OUT – 2 MPPT (Fuse + SPD) 600V is engineered to deliver dependable protection, improved reliability, and long-lasting performance for solar photovoltaic installations.
