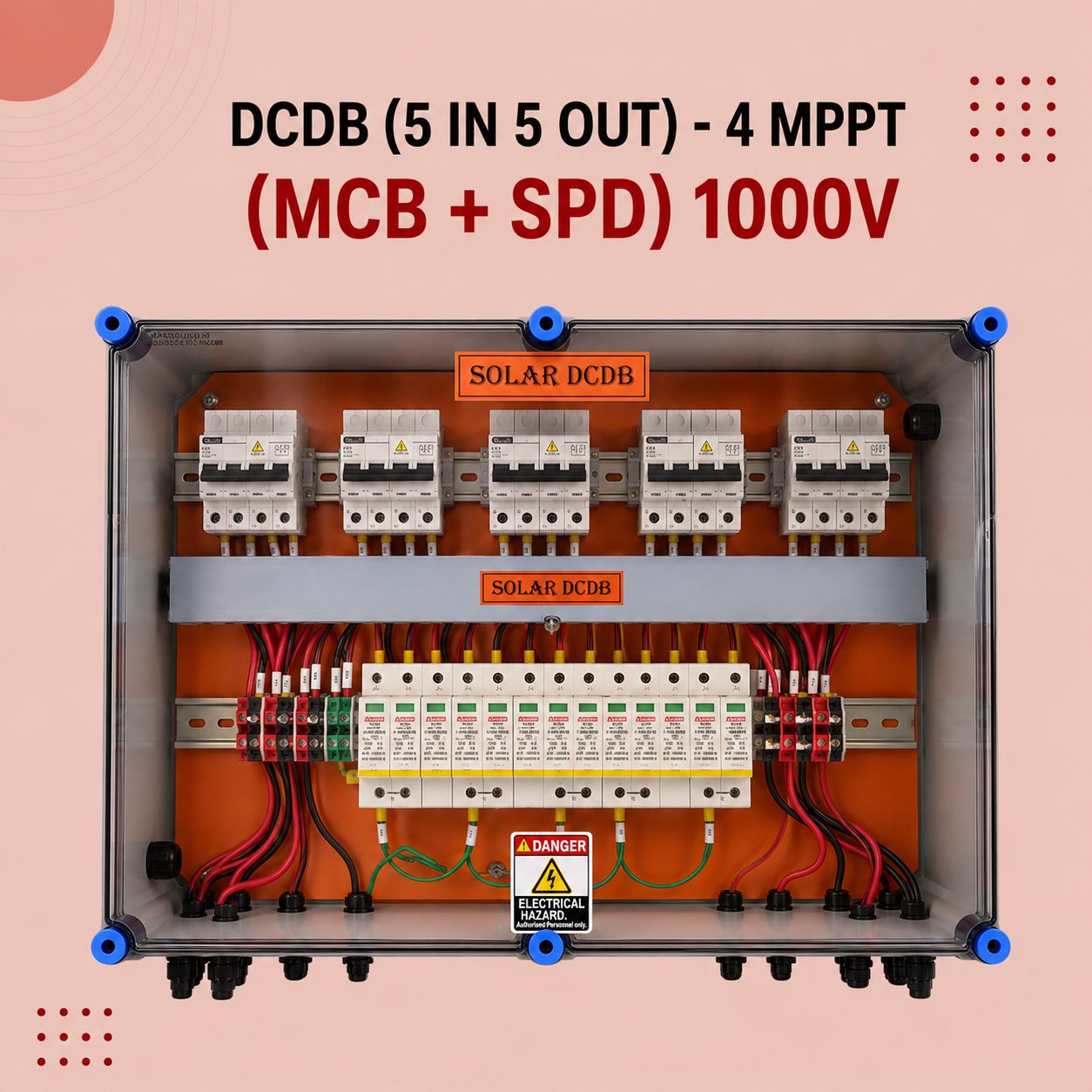

The DCDB 5 IN 5 OUT – 4 MPPT (MCB + SPD) 1000V is a premium Solar DC Distribution Box designed to provide safe protection and isolation for 5 PV string inputs and 5 outputs connected to 4 separate MPPTs in high-voltage solar photovoltaic systems. It integrates DC MCB protection and DC Surge Protection Devices (SPD) to safeguard solar equipment against overcurrent, short circuits, and transient voltage surges caused by lightning or electrical disturbances.

The unit is equipped with 5 Nos. of 32A DC MCBs (LK/Havells) for individual PV string protection and 4 Nos. of DC SPDs (Havells) for dedicated MPPT-wise surge protection. The enclosure is made from a durable 560 × 380 × 180 mm ABS + PC material, providing excellent resistance against UV rays, dust, moisture, and harsh environmental conditions.

Key Features:

• Designed for 4 MPPT with 5 PV string inputs and 5 outputs
• 5 × 32A DC MCBs (LK/Havells) for overload and short-circuit protection
• 4 × DC SPDs (Havells) for surge and lightning protection
• Individual MPPT-wise protection for enhanced system safety
• Strong 560 × 380 × 180 mm ABS + PC enclosure
• UV-resistant, weatherproof, and corrosion-resistant construction
• Easy installation and maintenance-friendly design
• Suitable for commercial and industrial solar PV systems
• Ensures reliable DC isolation and efficient solar system operation
