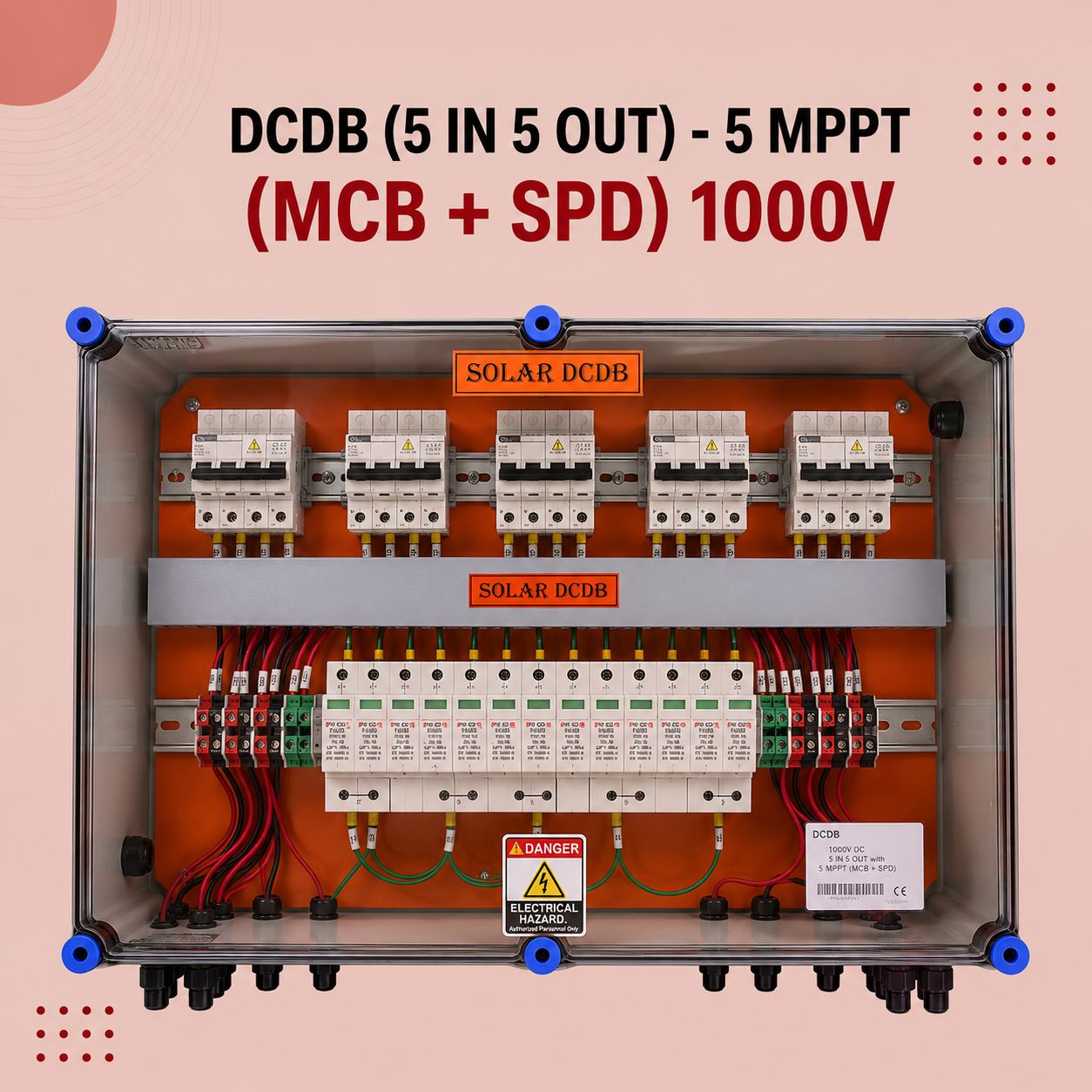

The DCDB 5 IN 5 OUT – 5 MPPT (MCB + SPD) 1000V is a high-performance Solar DC Distribution Box designed to provide complete protection and safe isolation for 5 PV string inputs and 5 outputs connected to 5 separate MPPTs in high-voltage solar photovoltaic systems. It combines DC MCB protection and DC Surge Protection Devices (SPD) to protect solar components from overcurrent, short circuits, and transient voltage surges caused by lightning or electrical disturbances.

The unit is equipped with 5 Nos. of 32A DC MCBs (LK/Havells) for individual PV string protection and 5 Nos. of DC SPDs (Havells) for dedicated MPPT-wise surge protection, ensuring maximum system safety and reliability. The enclosure is made from a durable 560 × 380 × 180 mm ABS + PC material, providing excellent resistance against UV rays, dust, moisture, and harsh outdoor environments.

Key Features:

• Designed for 5 MPPT with 5 PV string inputs and 5 outputs
• 5 × 32A DC MCBs (LK/Havells) for overload and short-circuit protection
• 5 × DC SPDs (Havells) for surge and lightning protection
• Individual MPPT-wise protection for enhanced system performance
• Strong 560 × 380 × 180 mm ABS + PC enclosure
• UV-resistant, weatherproof, and corrosion-resistant construction
• Easy installation and maintenance-friendly design
• Suitable for commercial and industrial solar PV applications
• Ensures safe DC isolation and reliable solar system operation
