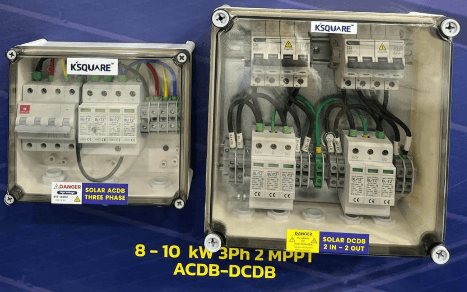

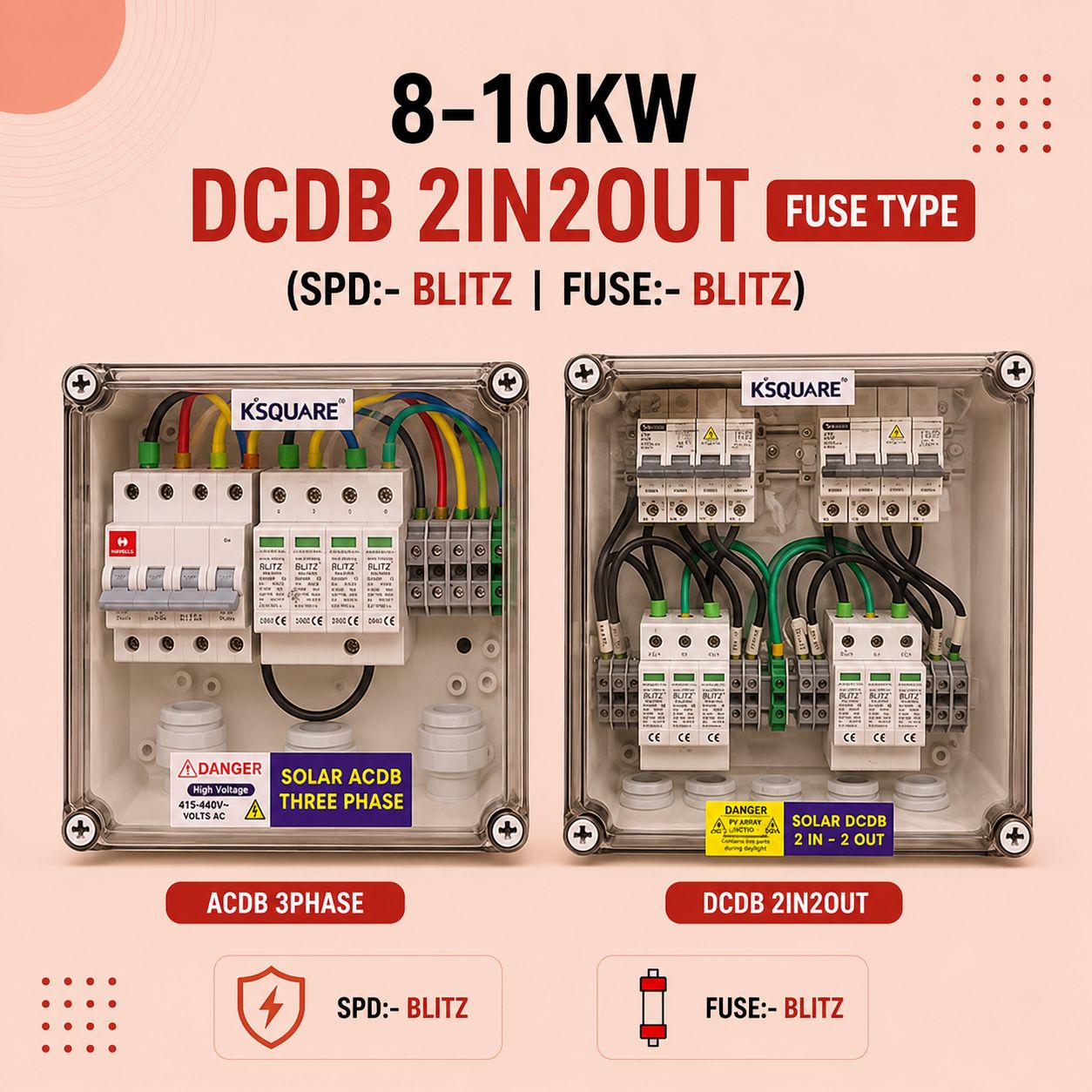

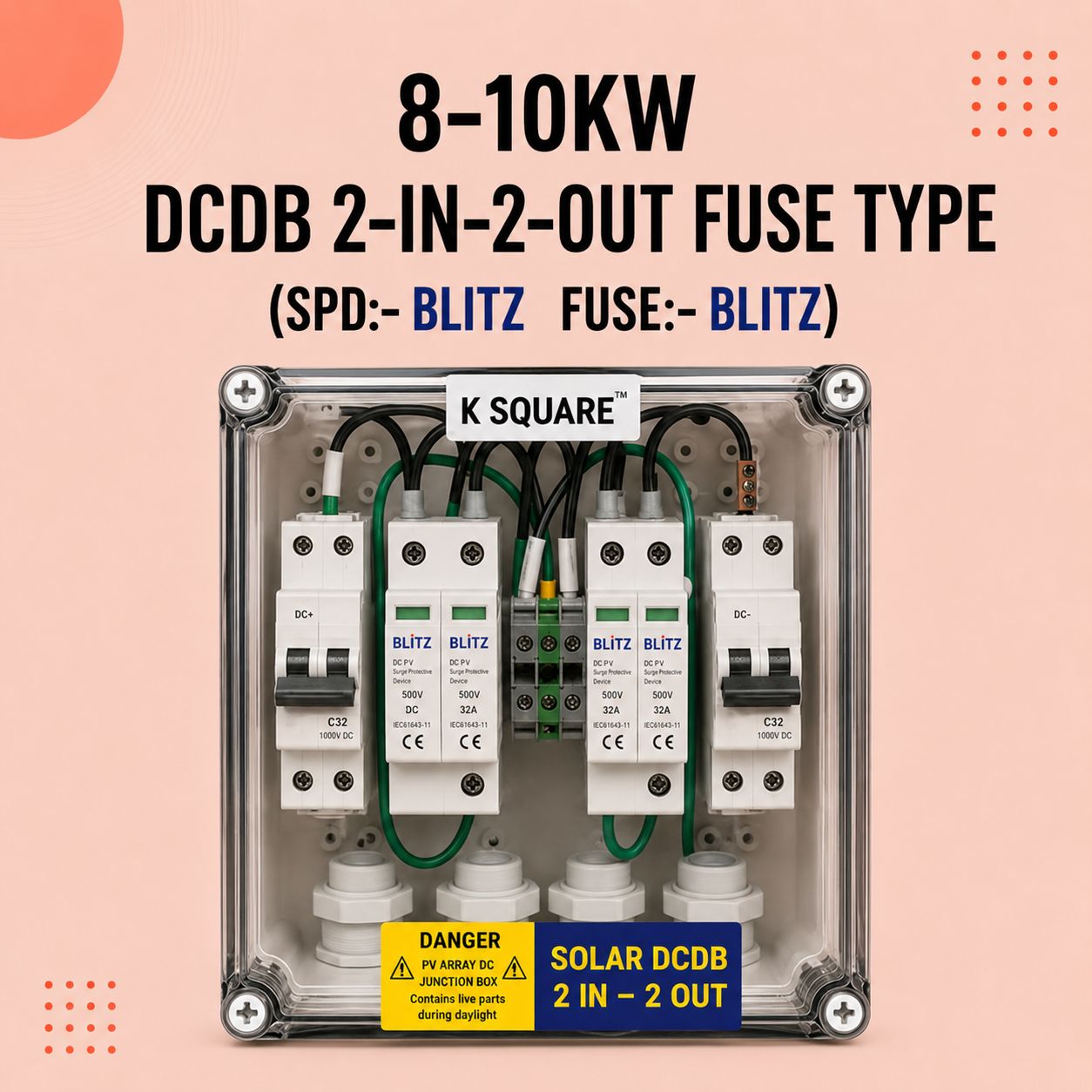

The 8–10KW DCDB 2 IN – 2 OUT Fuse Type is designed to provide reliable DC-side protection for medium-capacity solar PV systems. Equipped with BLITZ Surge Protection Device (SPD) and BLITZ DC Fuses, it safeguards solar strings against surges, overcurrent, and short-circuit faults, ensuring maximum system safety and performance. The robust UV-resistant enclosure with a transparent cover offers durability for outdoor installations while allowing easy inspection.
| Parameter | Specification |
|---|---|
| Product Type | Solar DC Distribution Box (DCDB) |
| System Capacity | 8–10KW |
| Configuration | 2 Input – 2 Output |
| Box Type | Fuse Type |
| Rated Voltage | Up to 1000V DC |
| Rated Current | Up to 32A per String |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Surge Protection Device | BLITZ Type II DC SPD |
| Fuse | BLITZ DC Fuse |
| Enclosure Material | UV Stabilized Polycarbonate |
| Enclosure Protection | IP65 |
| Mounting Type | Wall Mounted |
| Operating Temperature | -25°C to +60°C |
| Cable Entry | Bottom Gland Entry |
| Application | Residential & Commercial Solar PV Systems |
