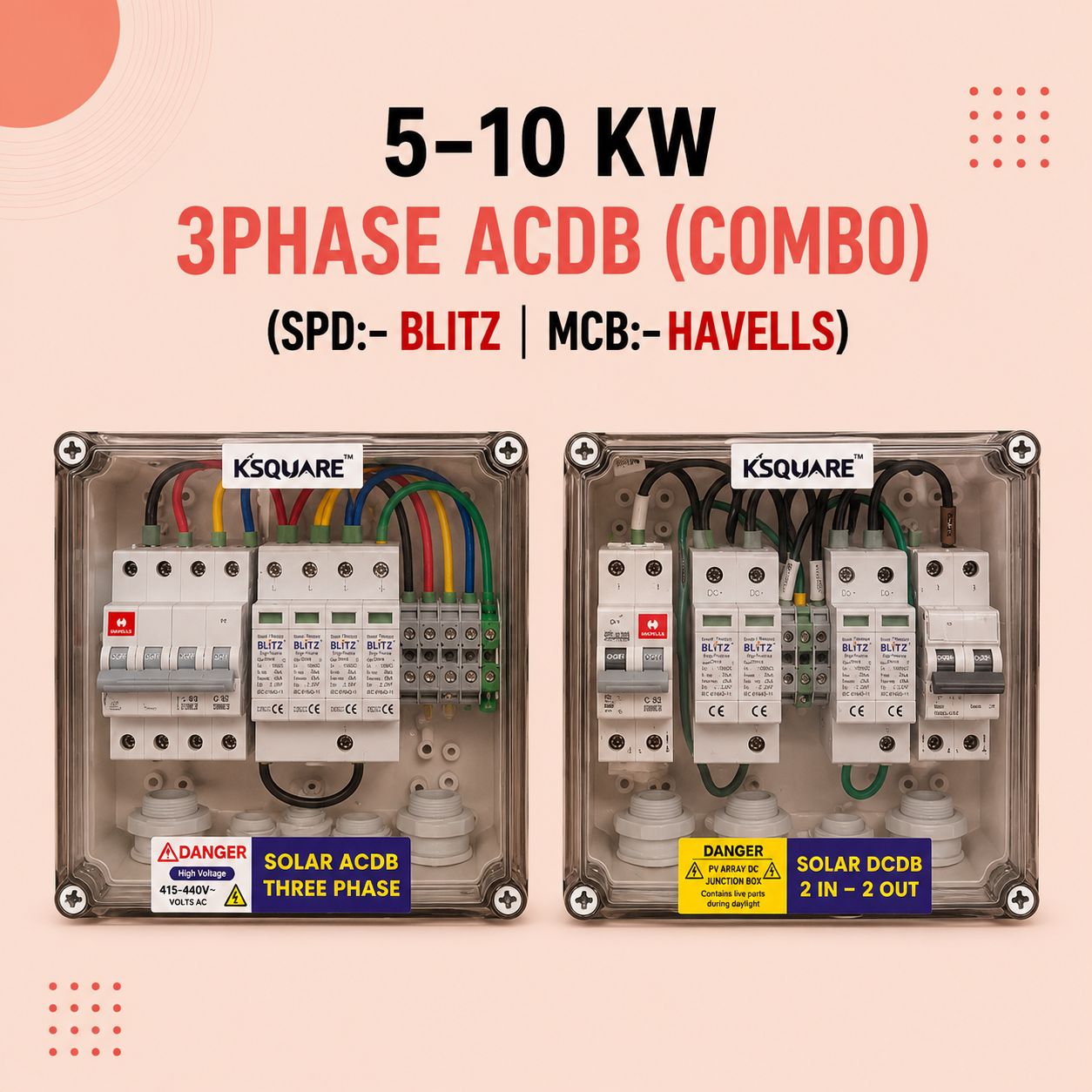

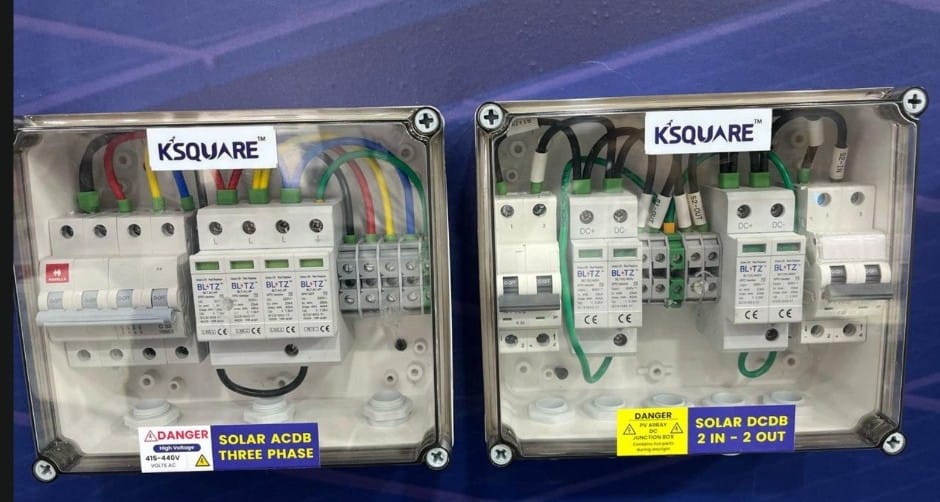

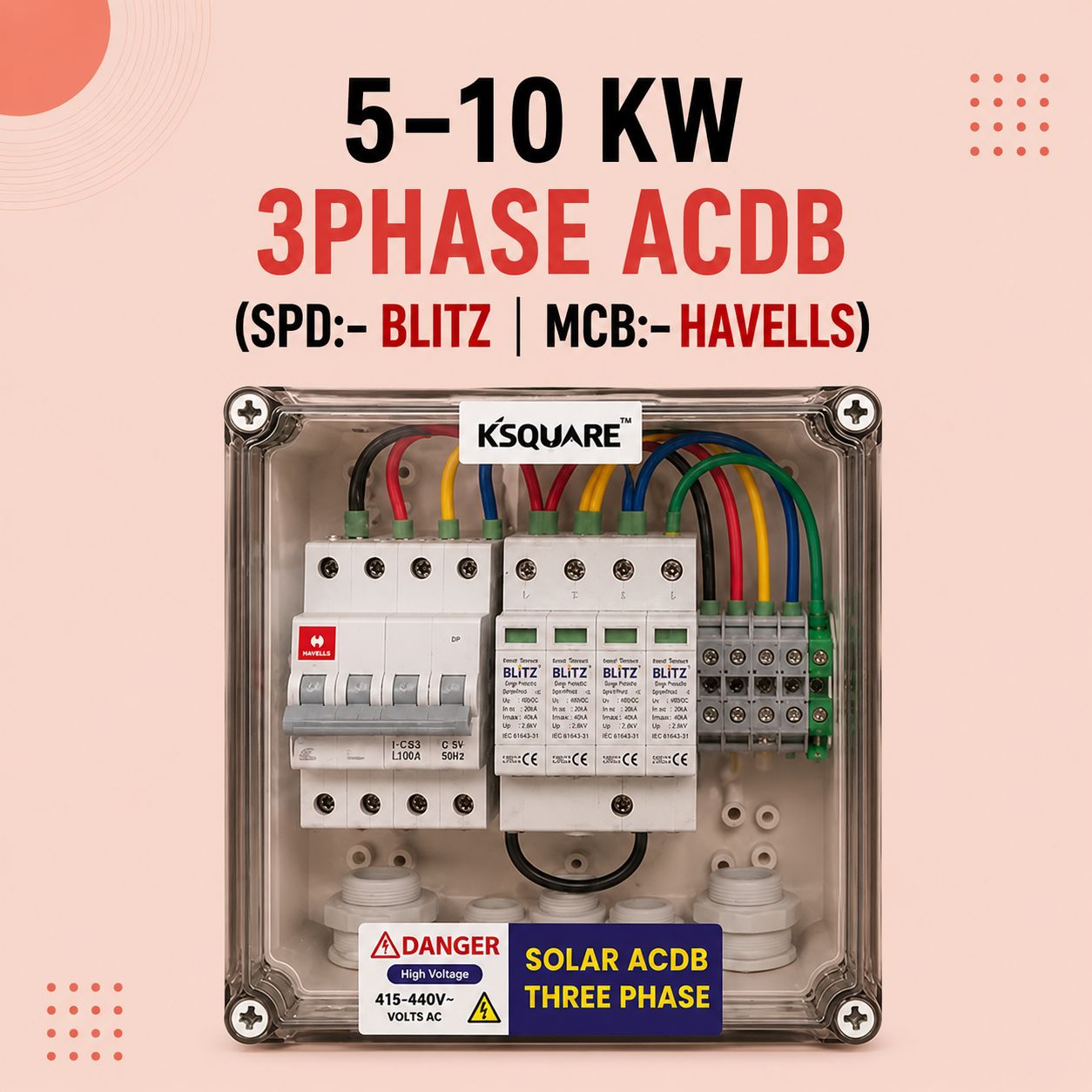

The 5–10KW 3 Phase ACDB (AC Distribution Box) is designed to provide safe and reliable AC-side protection for three-phase solar power systems. Built with a premium HAVELLS MCB and BLITZ Type II AC SPD, it protects the inverter and connected electrical equipment against overloads, short circuits, and voltage surges. The weather-resistant enclosure ensures long-lasting performance for both indoor and outdoor installations.
| Parameter | Specification |
|---|---|
| Product Type | Solar AC Distribution Box (ACDB) |
| System Capacity | 5–10KW |
| Phase | 3 Phase |
| Rated Voltage | 415V AC |
| Frequency | 50/60 Hz |
| Rated Current | Up to 32A |
| MCB | HAVELLS 4 Pole MCB |
| Surge Protection Device | BLITZ Type II AC SPD |
| Enclosure Material | UV Stabilized Polycarbonate |
| Enclosure Protection | IP65 |
| Mounting Type | Wall Mounted |
| Operating Temperature | -25°C to +60°C |
| Cable Entry | Bottom Gland Entry |
| Application | On-Grid & Hybrid Solar PV Systems |
