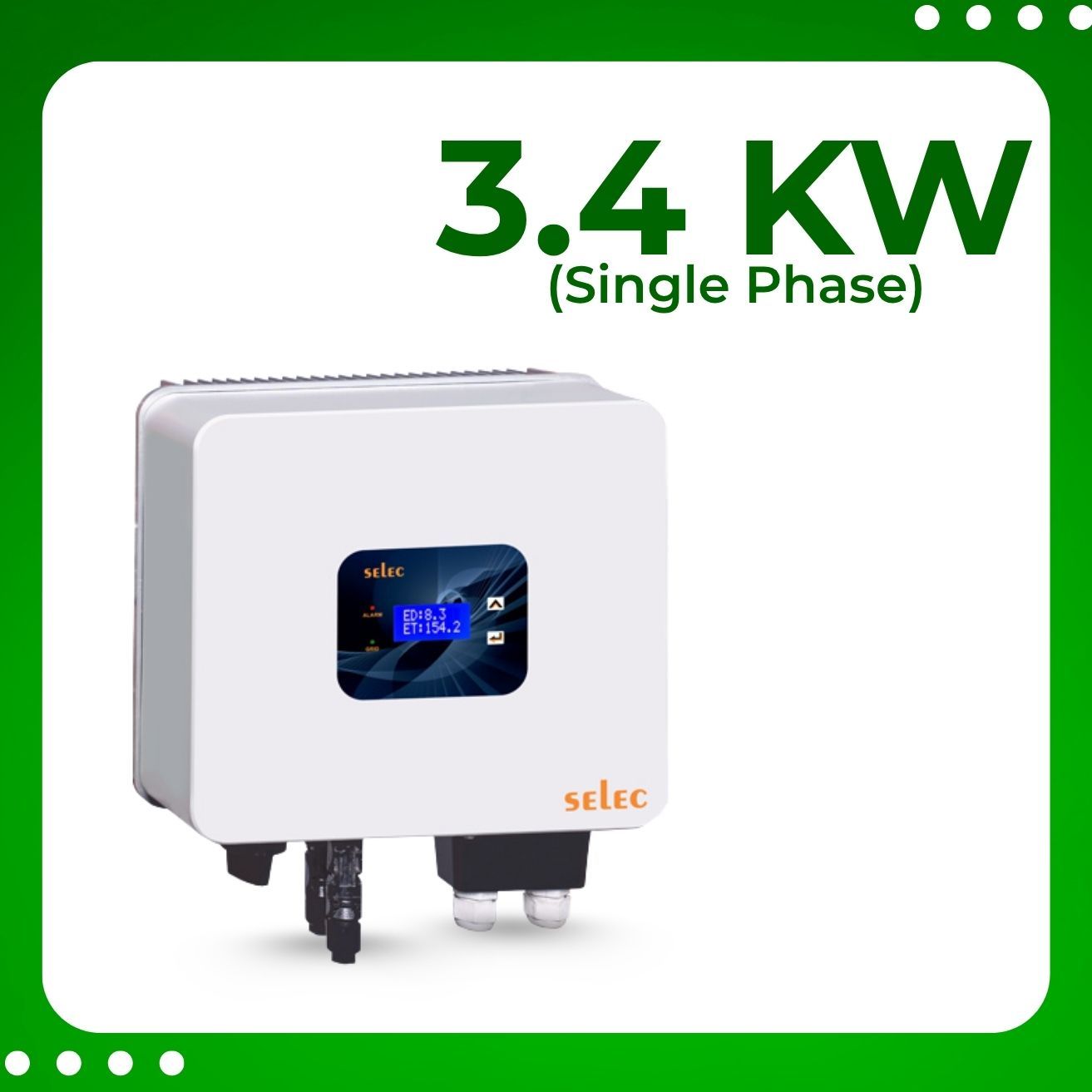

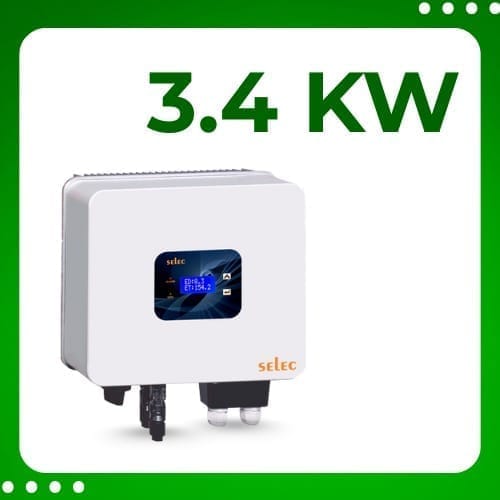

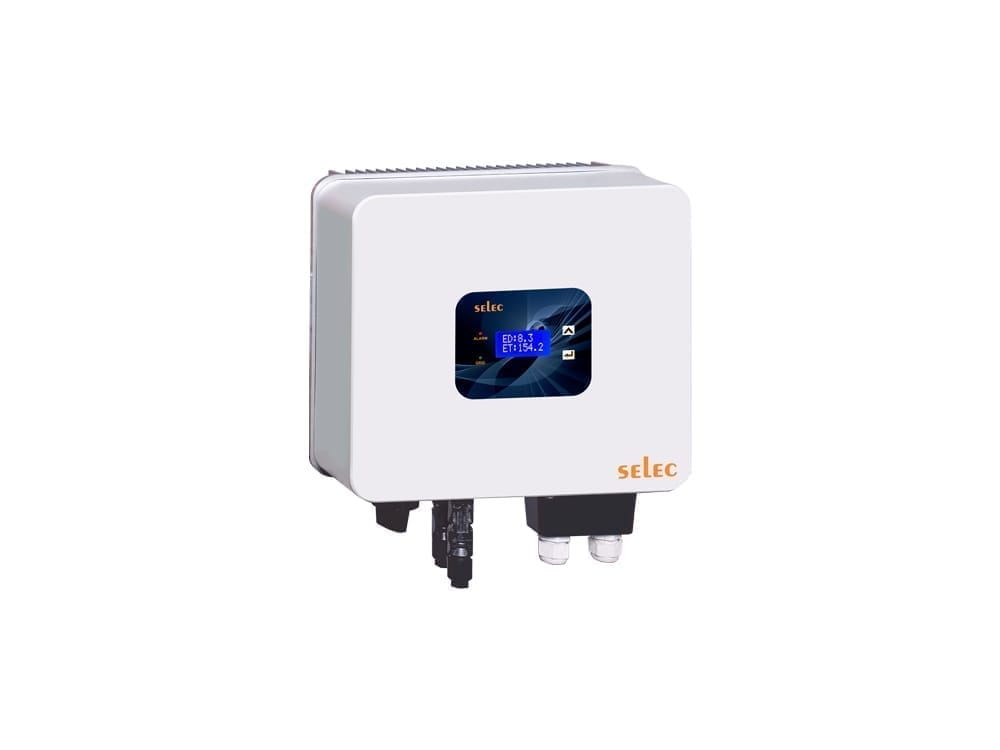

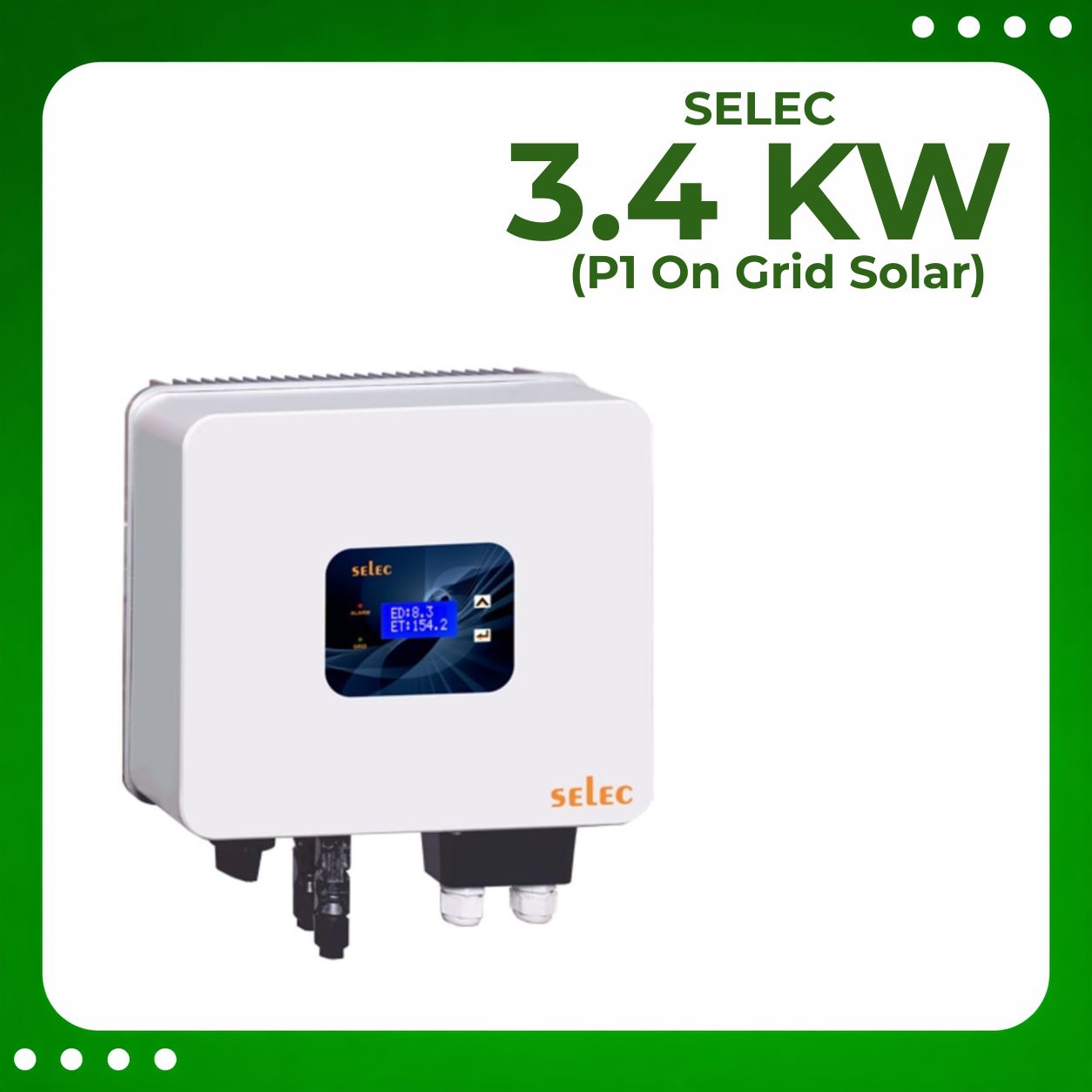

6927eeec45139022267dda83Single Phase, 3.4 kW Solar On Grid Inverter, BIS Certified

Wider MPPT Range
Anti-Islanding protection
Low start-up voltage
IP65 protection
96.86% efficiency
Natural cooling convection
In-built Zero Export Device
Remote monitoring and intelligent maintenance
In-house remote monitoring application 'Selec Solar'

Brief Specifications

Phase, Rating	1 phase,3.4 kW
Max. allowable power	5.1 kW
Start-up Voltage	50 V DC
MPPT Range	50-550 V DC
Max input current per MPPT	17 A
Number of MPPT	1
Max o/p current	15.71 A
Max s/c current per MPPT	20 A
Grid Voltage Range	90-290 V
THD %	<3% at rated load
Max. Efficiency	96.86%
Max. Altitude	4000m
Monitoring	RS485 (Default)/ Wi-Fi /GSM (To be ordered along with inverter separately)
Protections	IP65, DC reverse polarity, Short Circuit, Over Current, Over voltage/ Under Voltage, Over frequency/Under Frequency, Insulation resistance monitoring, Residual current detection, Surge, Islanding, Temperature, Integrated DC Switch (Optional), Integrated AFCI (Optional)
Certifications	BIS, BEE, IEC

Product Variants

Product Code	Description	No. of MPPT	DC Switch	Certifications
GTI003X41PN231	Solar On Grid Inverter - 1 Phase/ 3.4 kW, Wall mounted with Wifi Module	1	Yes	BIS, BEE, IEC
GTI003X41PN231-X	Solar On Grid Inverter - 1 Phase/ 3.4 kW, Wall mounted with Wifi Module	1	No	BIS, BEE, IEC

This meter comes with a 10-year replacement warranty, ensuring long-term reliability and complete peace of mind for the user.

SKU-JLNRHL0CY9

INR14500In Stock

Single Phase, 3.4 kW Solar On Grid Inverter, BIS Certified

Be the first to review this product

₹14,500

Add to Cart
